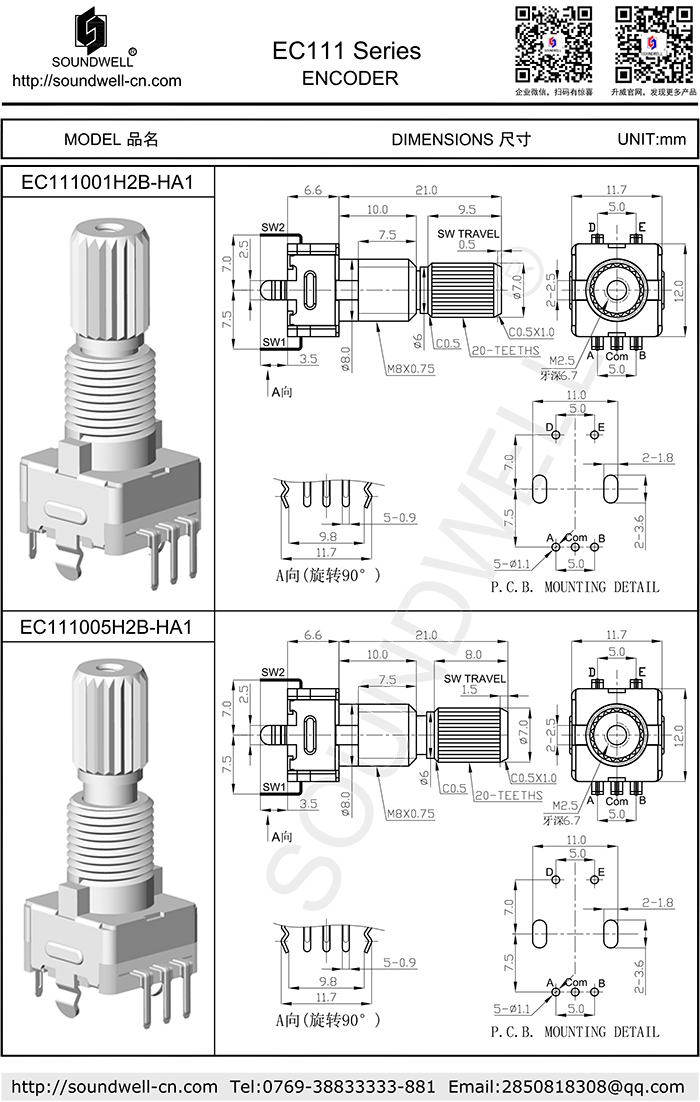

| Model: | EC111 series |
| Name: | Metal Shaft Incremental Encoder |
| Main Specifications: | Rated voltage: DC 5V Number of detent: 16/20/24/30 Pulses: 8/20/12/15 Working temperature: -40 ° C ~ 85 ° C Rotational life: 50,000 cycles Min Push operating life: 20,000 cycles Min |
| Features: |
Enclosed rotary encoder； Small size with push-on switch or no push-on switch; Available in many different variants. |
| Applications: | Car audio, car navigation, mixer, multimedia audio amplifier and other related electronic devices; The main functions are frequency modulation, volume control, temperature adjustment and function switching. |
ONE、MECHANICAL CHARACTERISTIC
1. Detent Torque: 50-250gf.cm
2. Number of detent : 16/20/24/30
3. Switch travel: 0.5±0.3 mm/1.5±0.3 mm
4. Switch operating force: 300-800gf.cm
5. Shaft wobble (mm p-p): 1.0 x L / 30mm p-p Max (L: installation length).
TWO、ELECTRICAL CHARACTERISTIC
1. Resolution: 8/12/15/20 pulses/360°
2. Phase difference: ≥4 ms
3. Rated voltage: DC 5V
4. Insulation Resistance: 100MΩ 1 Minute at DC250V
5. Dielectric Voltage: 1 Minute at AC 300V
THREE、ENDURANCE CHARACTERISTIC
1. Rotational life: 50,000 cycles Min
2. Push operating life: 20,000 cycles Min
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
